1915-1920

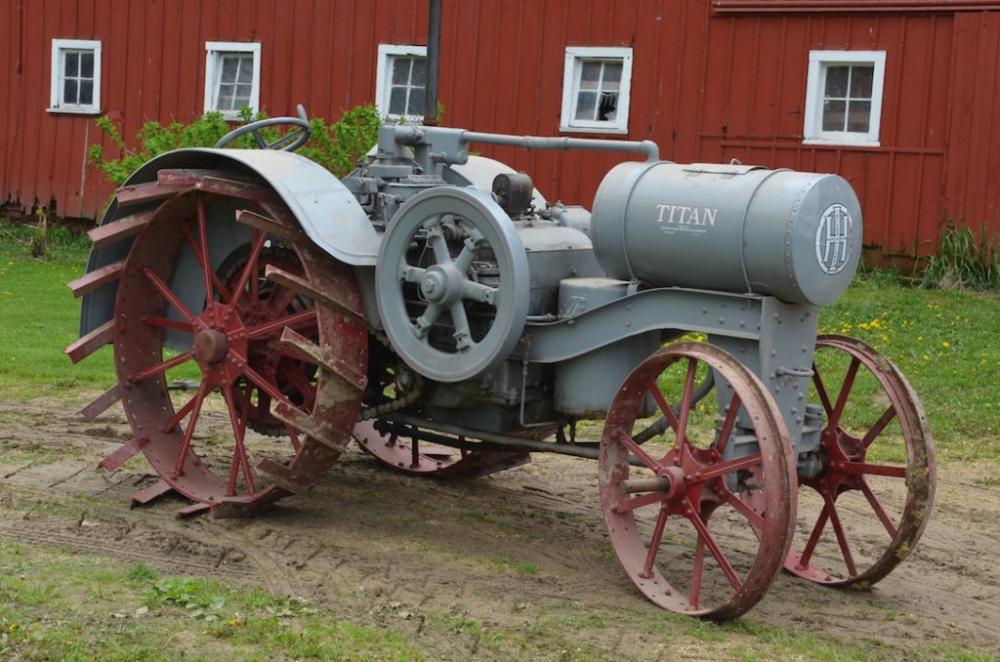

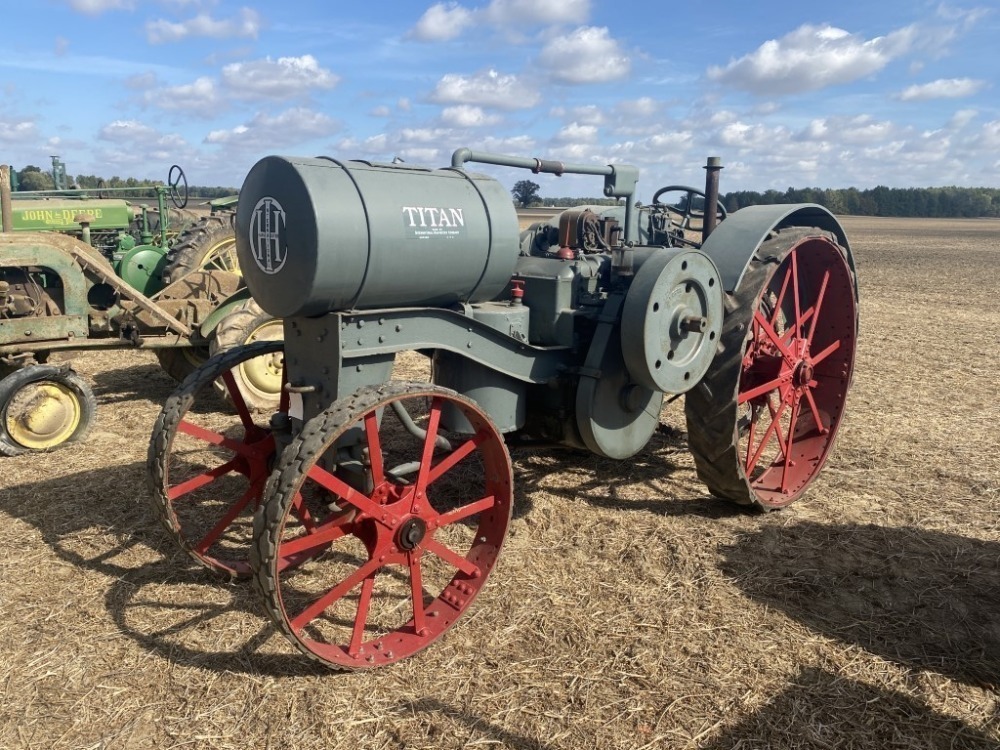

The Titan 10-20 tractors were the first International models to be widely used for nearly all tillage operations. Certainly, the IHC Mogul tractors found many applica­tions, but its sales never approached that of the 10-20 Titan. Titan 10-20 tractors were popular in the harvest fields, replacing horses on the grain binders. International Harvester provided a 65-page instructions and parts manual with their 10-20 Titan tractors. It fully detailed everything from tractor operation and maintenance to major repairs. Beginning in 1919, the 10-20 Titan was modified with full-length rear fenders and an improved operator’s platform. It is generally held that the engine speed was also chang­ed at this time to 575 RPM, compared to the 500 RPM of the earlier models.

Engine: International Harvester

Cylinders: 2

Bore & Stroke: 6.50x8.00

RPM: 575

CID: 530.9

Fuel: Kerosene

Main Fuel Tank Cap:

Aux Fuel Tank Cap:

Carburetor:

Cooling Capacity:

Drawbar HP: 10

Belt PTO HP: 20

Weight: lbs

Length: inches

Width: inches

Height: inches

Number of Gears: 2/1

Options:

1915: TV101

1916: TV108

1917: TV2354

1918: TV11398

1919: TV29073

1920: TV46307

Final: TV50235
