Old Iron Garage

Old Iron Database

Farmall

Farmall M (1939-1954)

i have one

add yours to registry

add/remove from wishlist - view your list

contribute

add tractor information

Photos
Tractor Info

1939-1954

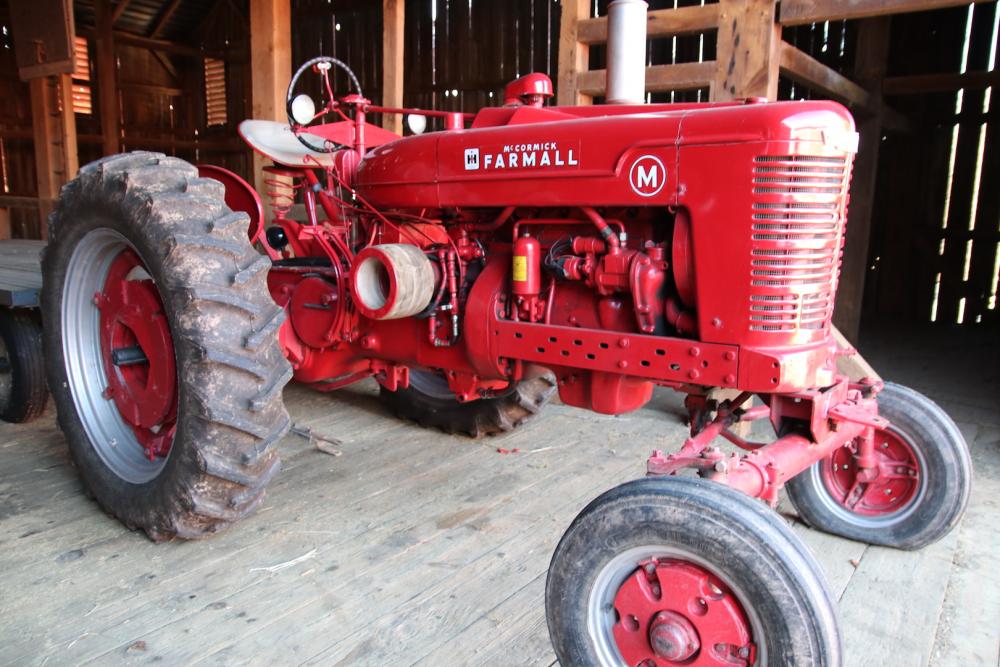

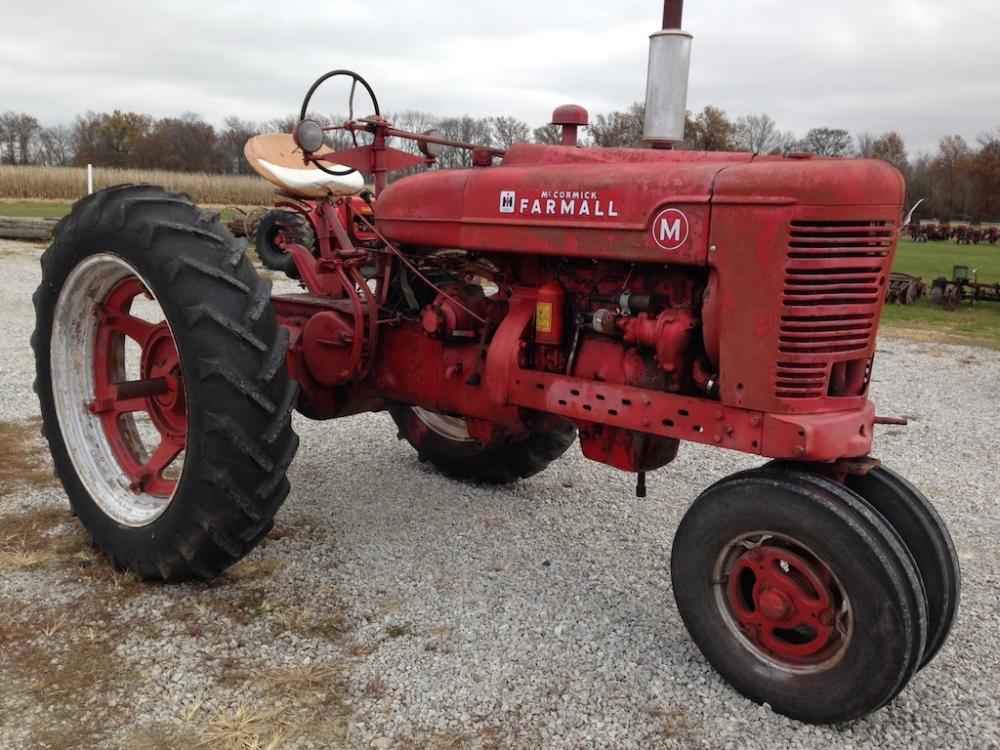

One of the best-known tractors on the American farm scene was the Farmall M and its descendant, the Super M. Proof of its popularity is seen in the production of over35,000 units in 1951 alone. Its 48 BHP suited it for an all-around three plow tractor. A number of modified Model M tractors were available.

Tractor Info

Engine: IHC Vertical I-Head

Cylinders: 4

Bore & Stroke: 3.875x5.25

RPM: 1450

CID: 247.7

Fuel: Distillate/Gasoline

Main Fuel Tank Cap: 21

Aux Fuel Tank Cap: 1

Carburetor: IHC E-12

Cooling Capacity: 6

Drawbar HP: 30.62

Belt PTO HP: 34.82

Weight: 4910 lbs

Length: 133 inches

Width: 84 inches

Height: 78.3 inches

Number of Gears: 5/1

Options:

Total Produced: 270140

1939: 501

1940: 7240

1941: 25371

1942: 50988

1943: 60011

1944: 67424

1945: 88085

1946: 105564

1947: 122823

1948: 151708

1949: 180514

1950: 213579

1951: 247518

1952: 290923

1952: F501

1953: F12516

1953: L501906

1954: F51977

Location: Plate on the left side of the clutch housing

Last Updated: June 10th, 2022

related models

Related Posts

help preserve the history of old iron

The Old Iron Database is community driven and growing. If you have photos, literature, history, specs, or additional content to share, we invite you to submit using the contribute form and help us build this new world of vintage iron!
